Foundation::Rendering::RenderApplication Class Reference

Template base class for rendering applications. More...

#include <Application.hpp>

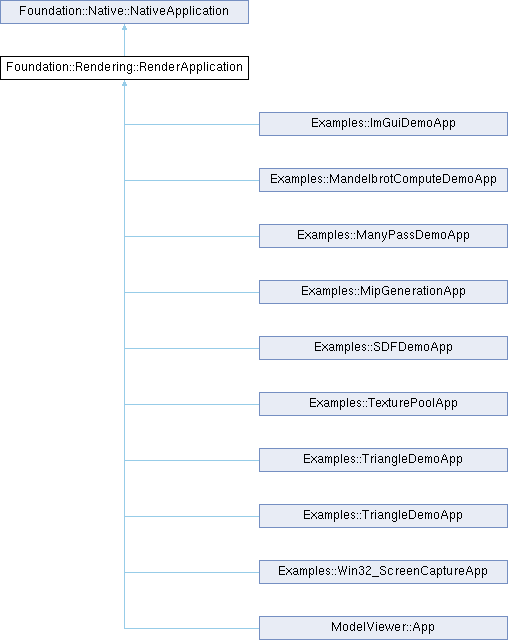

Inheritance diagram for Foundation::Rendering::RenderApplication:

Classes
struct	FrameTiming
	Rolling frame timing information for performance measurements. More...

Public Member Functions
template<typename Backend , typename... Args>
void	Initialize (ApplicationInitDesc const &desc={}, Args &&... args)
	Initialize the application with the specified RHI backend.
RHIExtent2D	GetFramebufferSize () const
	Retrieve the framebuffer size of the current window.
FrameTiming	GetTiming () const
	Retrieve the timing information of the last frame.
Renderer *	GetRenderer () const
	Retrieve the underlying Renderer instance.
RHISwapchain *	GetSwapchain () const
	Retrieve the current RHISwapchain instance.
Native::NativeWindow *	GetNativeWindow ()
	Retrieve the current NativeWindow instance.
Allocator *	GetAllocator ()
	Retrieve the allocator used for general application allocations.
Allocator *	GetRendererAllocator ()
	Retrieve the allocator used for renderer allocations.
void	RunForever ()
	Start the Render thread and run the application loop indefinitely, until the window is closed or the application is exited.
void	WaitForFrame ()
	Wait for the render thread to start, or the next frame to be rendered.
void	ResetRendererOnNextFrame ()
	Reset the renderer on the next frame, calling OnRendererSetup internally.
void	Shutdown ()
	Flag the application to exit.
Public Member Functions inherited from Foundation::Native::NativeApplication
template<typename T = float>
T	GetApplicationTime () const
	Returns a high-resolution time in seconds since the application started.
size_t	GetApplicationCounter () const
	Returns a high-resolution time in nanoseconds since the application started.
	NativeApplication ()
virtual	~NativeApplication ()

Protected Member Functions
virtual void	OnDeviceSetup ()
	Actions to take after device specific resources has been set up.
virtual void	OnBeforeFrame ()
	Action to take before each frame is executed.
virtual void	OnAfterFrame ()
	Action to take after each frame is executed.
virtual void	OnRendererSetup ()=0
	Set up the renderer by creating passes, resources, and other configurations.
virtual void	OnRendererPostSetup ()
	Action to take after the renderer has been set up.
virtual void	OnApplicationTick ()
	Action to take on every application tick.

Protected Attributes
ApplicationInitDesc	mDesc
DefaultAllocator	mAlloc
DefaultAllocator	mAllocRenderer
Native::NativeWindow	mWindow
UniquePtr< RHIApplication >	mRHI
RHIApplicationScopedObjectHandle< RHIDevice >	mDevice
RHIDeviceScopedObjectHandle< RHISwapchain >	mSwapchain
UniquePtr< Renderer >	mRenderer
FrameTiming	mTiming {}
Async::Thread	mRenderThread
Async::Condition	mRenderFrame
Async::Mutex	mRenderMutex
bool	mRenderThreadReset {false}
bool	mRenderThreadStarted {false}
bool	mAppShouldClose {false}

Private Member Functions
void	Execute ()
void	CreateSwapchain ()
void	InitializeInternal ()
void	InitializeRenderer ()
void	RenderWorker ()

Additional Inherited Members
Static Public Member Functions inherited from Foundation::Native::NativeApplication
static NativeWindow	CreateNativeWindow (uint32_t width, uint32_t height, const char *title)
	Creates a window with the specified width, height, and title.

Detailed Description

Template base class for rendering applications.

Member Function Documentation

CreateSwapchain()

void RenderApplication::CreateSwapchain ( )

private

Execute()

void RenderApplication::Execute ( )

private

GetAllocator()

Allocator * Foundation::Rendering::RenderApplication::GetAllocator ( )

inline

Retrieve the allocator used for general application allocations.

Examples

MipGeneration.cpp, and TexturePool.cpp.

GetFramebufferSize()

RHIExtent2D Foundation::Rendering::RenderApplication::GetFramebufferSize ( ) const

inline

Retrieve the framebuffer size of the current window.

GetNativeWindow()

Native::NativeWindow * Foundation::Rendering::RenderApplication::GetNativeWindow ( )

inline

Retrieve the current NativeWindow instance.

Examples

ImGui.cpp, and MipGeneration.cpp.

GetRenderer()

Renderer * Foundation::Rendering::RenderApplication::GetRenderer ( ) const

inline

Retrieve the underlying Renderer instance.

GetRendererAllocator()

Allocator * Foundation::Rendering::RenderApplication::GetRendererAllocator ( )

inline

Retrieve the allocator used for renderer allocations.

GetSwapchain()

RHISwapchain * Foundation::Rendering::RenderApplication::GetSwapchain ( ) const

inline

Retrieve the current RHISwapchain instance.

GetTiming()

FrameTiming Foundation::Rendering::RenderApplication::GetTiming ( ) const

inline

Retrieve the timing information of the last frame.

Initialize()

template<typename Backend , typename... Args>

void Foundation::Rendering::RenderApplication::Initialize ( ApplicationInitDesc const &  desc = {}, Args &&...  args  )

inline

Initialize the application with the specified RHI backend.

Note

This must be called before RunForever().

Examples

ImGui.cpp, MandelbrotCompute.cpp, ManyPass.cpp, MeshShader.cpp, MipGeneration.cpp, SDF2D.cpp, TexturePool.cpp, and Triangle.cpp.

InitializeInternal()

void RenderApplication::InitializeInternal ( )

private

InitializeRenderer()

void RenderApplication::InitializeRenderer ( )

private

OnAfterFrame()

virtual void Foundation::Rendering::RenderApplication::OnAfterFrame ( )

inlineprotectedvirtual

Action to take after each frame is executed.

This is run on the Render thread.

This is invoked after the renderer has submitted all passes, but before the next frame could be rendered.

Implementation may leave this empty if no action is needed.

Note

This should not be directly called.

OnApplicationTick()

virtual void Foundation::Rendering::RenderApplication::OnApplicationTick ( )

inlineprotectedvirtual

Action to take on every application tick.

Note

This is run on the main thread, i.e. the calling thread of RunForever. No synchronization is performed on a per-frame basis. You may want to use WaitForFrame() to synchronize with the render thread if needed.

This runs in a tight loop in RunForever(), and is only run after the Render thread has started - i.e. after OnDeviceSetup() and OnRendererSetup() has been called, in that order.

Implementation may leave this empty if no action is needed.

Note

This should not be directly called.

Reimplemented in Examples::Win32_ScreenCaptureApp, and ModelViewer::App.

OnBeforeFrame()

virtual void Foundation::Rendering::RenderApplication::OnBeforeFrame ( )

inlineprotectedvirtual

Action to take before each frame is executed.

This is run on the Render thread.

This is invoked before the renderer executes the passes, but after the current frame is acquired from the swapchain.

Implementation may leave this empty if no action is needed.

Note

This should not be directly called.

Reimplemented in Examples::ImGuiDemoApp, Examples::MipGenerationApp, and ModelViewer::App.

OnDeviceSetup()

virtual void Foundation::Rendering::RenderApplication::OnDeviceSetup ( )

inlineprotectedvirtual

Actions to take after device specific resources has been set up.

This is run on the main thread, i.e. the calling thread of Initialize(), after the device and swapchain is created, but before the Renderer is created.

Implementation may leave this empty if no action is needed.

Note

This should not be directly called.

Reimplemented in Examples::ImGuiDemoApp, Examples::MipGenerationApp, Examples::TexturePoolApp, Examples::Win32_ScreenCaptureApp, and ModelViewer::App.

OnRendererPostSetup()

virtual void Foundation::Rendering::RenderApplication::OnRendererPostSetup ( )

inlineprotectedvirtual

Action to take after the renderer has been set up.

This is run on the Render thread, immediately after OnRendererSetup has been called, and before the first frame is rendered.

Implementation may leave this empty if no action is needed.

Note

This should not be directly called.

Reimplemented in Examples::MipGenerationApp, and ModelViewer::App.

OnRendererSetup()

virtual void Foundation::Rendering::RenderApplication::OnRendererSetup ( )

protectedpure virtual

Set up the renderer by creating passes, resources, and other configurations.

Note

This is where you should set up your rendering pipeline.

This is invoked by InitializeRenderer on the Render thread, within a Renderer::BeginSetup and Renderer::EndSetup clause, thus invoking Renderer::BeginSetup, Renderer::EndSetup here again is incorrect. and will be called again if the swapchain is recreated.

This MUST be implemented by the subclass.

This should not be directly called.

Implemented in Examples::ImGuiDemoApp, Examples::MandelbrotComputeDemoApp, Examples::ManyPassDemoApp, Examples::TriangleDemoApp, Examples::MipGenerationApp, Examples::SDFDemoApp, Examples::TexturePoolApp, Examples::TriangleDemoApp, Examples::Win32_ScreenCaptureApp, and ModelViewer::App.

RenderWorker()

void RenderApplication::RenderWorker ( )

private

ResetRendererOnNextFrame()

void RenderApplication::ResetRendererOnNextFrame

(

)

Reset the renderer on the next frame, calling OnRendererSetup internally.

Note

This can be called from any thread, and will be executed on the Render thread on the next frame of its work.

RunForever()

void RenderApplication::RunForever

(

)

Start the Render thread and run the application loop indefinitely, until the window is closed or the application is exited.

A Window will be created if Initialize was called with desc.present == true.

Examples

ImGui.cpp, MandelbrotCompute.cpp, ManyPass.cpp, MeshShader.cpp, MipGeneration.cpp, SDF2D.cpp, TexturePool.cpp, and Triangle.cpp.

Shutdown()

void RenderApplication::Shutdown

(

)

Flag the application to exit.

Note

This can be called from any thread.

This does not immediately terminate the application. At the end of the current tick of the main loop in RunForever(), the application will exit gracefully if this is called, or the main window is closed.

WaitForFrame()

void RenderApplication::WaitForFrame

(

)

Wait for the render thread to start, or the next frame to be rendered.

Member Data Documentation

mAlloc

DefaultAllocator Foundation::Rendering::RenderApplication::mAlloc

protected

Examples

ImGui.cpp, and MipGeneration.cpp.

mAllocRenderer

DefaultAllocator Foundation::Rendering::RenderApplication::mAllocRenderer

protected

mAppShouldClose

bool Foundation::Rendering::RenderApplication::mAppShouldClose {false}

protected

mDesc

ApplicationInitDesc Foundation::Rendering::RenderApplication::mDesc

protected

Examples

MandelbrotCompute.cpp, and MipGeneration.cpp.

mDevice

RHIApplicationScopedObjectHandle<RHIDevice> Foundation::Rendering::RenderApplication::mDevice

protected

Examples

ImGui.cpp, MipGeneration.cpp, and TexturePool.cpp.

mRenderer

UniquePtr<Renderer> Foundation::Rendering::RenderApplication::mRenderer

protected

Examples

ImGui.cpp, MandelbrotCompute.cpp, ManyPass.cpp, MeshShader.cpp, MipGeneration.cpp, SDF2D.cpp, and Triangle.cpp.

mRenderFrame

Async::Condition Foundation::Rendering::RenderApplication::mRenderFrame

protected

mRenderMutex

Async::Mutex Foundation::Rendering::RenderApplication::mRenderMutex

protected

mRenderThread

Async::Thread Foundation::Rendering::RenderApplication::mRenderThread

protected

mRenderThreadReset

bool Foundation::Rendering::RenderApplication::mRenderThreadReset {false}

protected

mRenderThreadStarted

bool Foundation::Rendering::RenderApplication::mRenderThreadStarted {false}

protected

mRHI

UniquePtr<RHIApplication> Foundation::Rendering::RenderApplication::mRHI

protected

mSwapchain

RHIDeviceScopedObjectHandle<RHISwapchain> Foundation::Rendering::RenderApplication::mSwapchain

protected

mTiming

FrameTiming Foundation::Rendering::RenderApplication::mTiming {}

protected

mWindow

Native::NativeWindow Foundation::Rendering::RenderApplication::mWindow

protected

---

The documentation for this class was generated from the following files:

• Source/Rendering/Application.hpp
• Source/Rendering/Application.cpp
